Gyrex Integral Muzzle Brake Direct Thread Mount

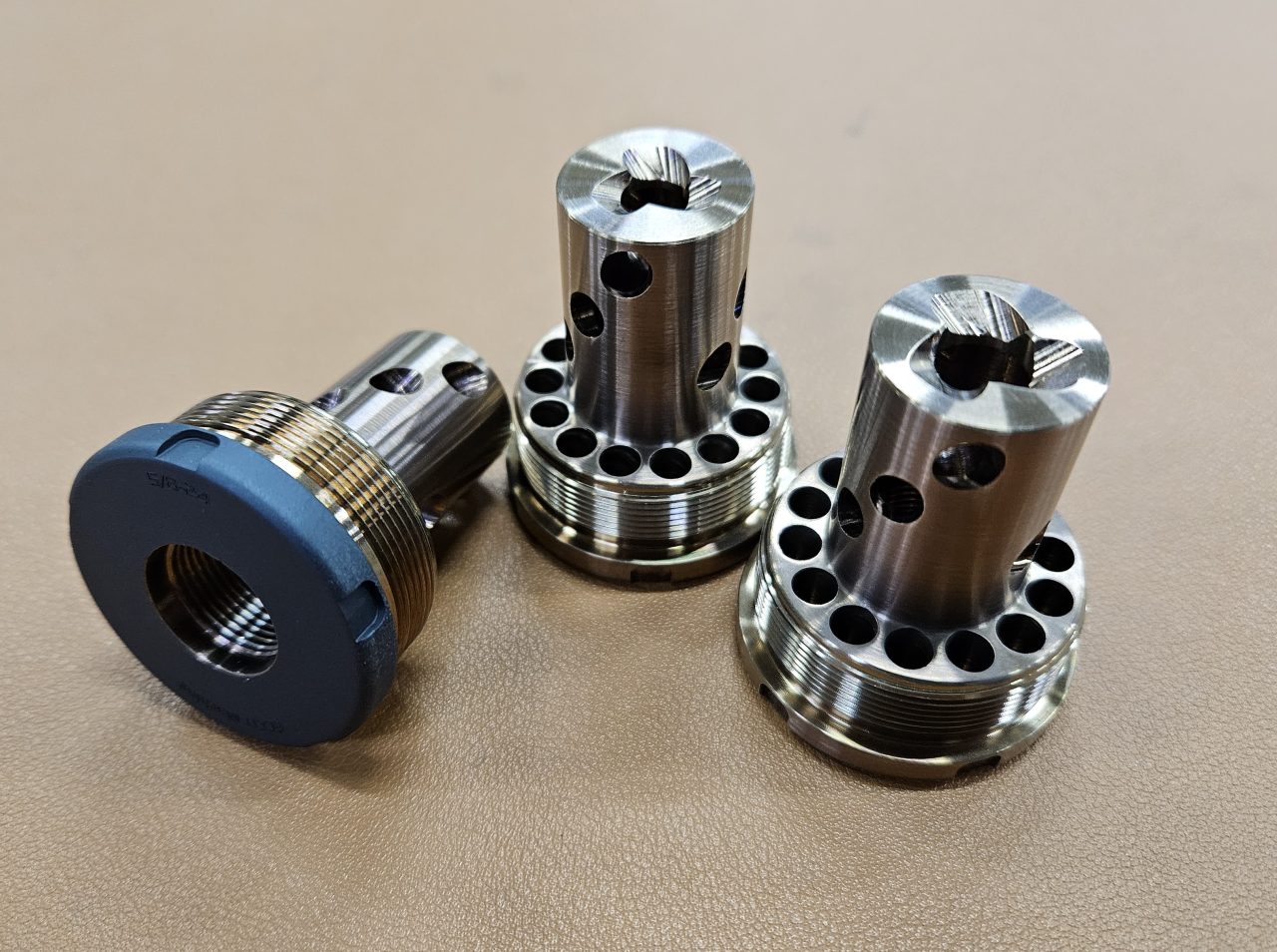

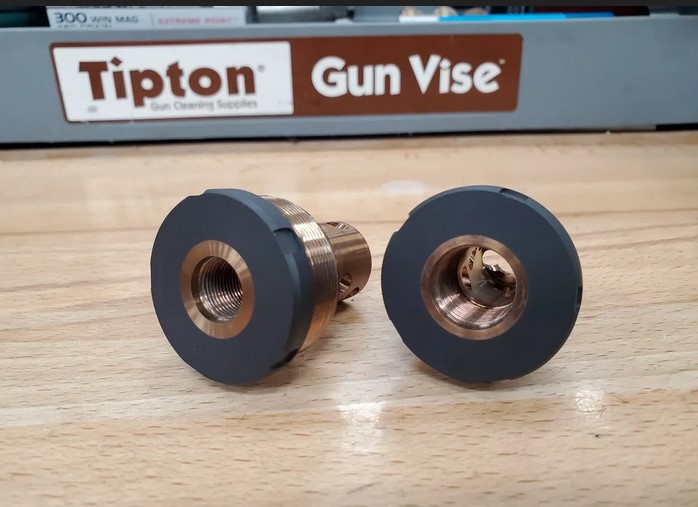

The Gyrex Helix Port (Patent Pending) integral muzzle brake direct thread mount gives the simplicity of a direct thread mount and still have the benefits of a muzzle brake inside your suppressor. Our unique helical port design optimizes blast chamber efficiency with high velocity cartridges. Compatible with 1.375-24 Bravo threaded suppressors, requires minimum 1-3/4″ distance from rear face of suppressor to blast baffle tip. Installs/removes with a hook type spanner wrench.
Material: 17-4 H900 stainless steel
Overall Length: 1.75″ Flange thickness: .2″
Flange diameter: 1.5″
Weight: 3.8-4.5 ounces
Internal thread: Choose muzzle thread
External thread: 1.375-24

Standard pattern is .30 caliber aperture on 5/8-24 threaded versions, .224″ caliber aperture for 1/2-28 threaded versions. Increasing aperture size can be done at no additional charge, please specify the caliber you need to pass through it.


Gyrex direct thread requires at least 1.6″  from the rear face of your Bravo threaded suppressor to the blast baffle tip.

In stock Natural finish or Black adapters ship 1-2 business days. Other color options add up to 10 business days.
Contact us for other muzzle thread options.

Additional information

Gyrex Integral Pitch

1/2-28, 5/8-24

2 responses to “Gyrex Integral Muzzle Brake Direct Thread Mount”

    Linh Nguyen
    October 27, 2023
    It gives you the flexibility to mount different suppressors with the HUB thread pitch and good brake. Also it very easy to install and do not have to deal with timing the muzzle device
    July 21, 2023
    Have one of these as a part of a recore done when they first became available. Now. Using one for a nomad as a sacrificial first baffle and mount. Will update when I have more rounds on it
